Export Abandoned Cart data using Webhooks

In the recent past, we have had some customers come to us with queries on how can they export the abandoned cart data to a 3rd party or system. While the plugin does provide multiple methods to send reminders to customers (including emails, SMS & FB notifications), the feature to export abandoned cart data to an outsider does hold some merit.

Hence we introduced the feature of creating webhooks since version 8.7.0. Using these you can send the abandoned cart data to a Delivery URL, from where the same can be captured and used further.

The list of webhooks available in the plugin:

  1. Email address captured via Add to Cart popup
  2. Email address captured at Checkout
  3. Email address captured via Form integrations
  4. Cart abandoned after cut-off
  5. Cart Abandonment Reminder Email Sent
  6. Cart Abandonment Reminder SMS Sent
  7. Cart Abandonment Reminder FB message Sent
  8. Recovery link clicked in reminders sent
  9. Abandoned Order Recovered

Where can I find them?

Abandon Cart plugin webhooks can be found in WooCommerce->Settings->Advanced->Webhooks

How to set it up?

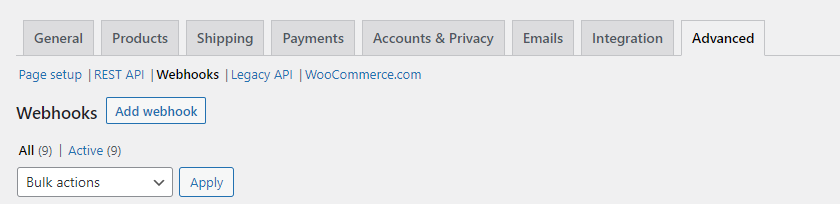

  1. Click on Add Webhook button

Add Webhooks

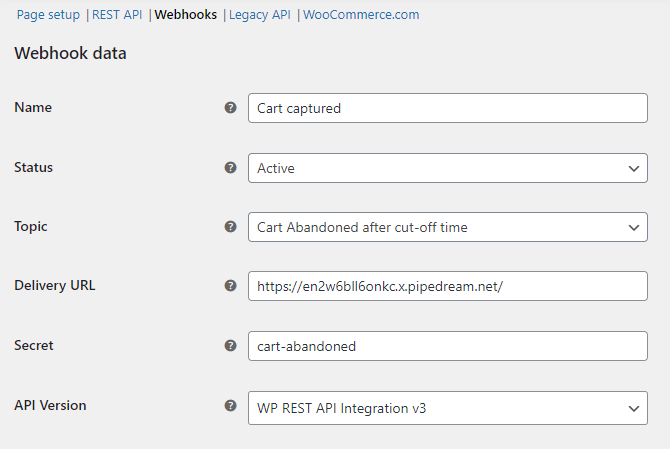

2. Enter the details.

Webhook details3. Click on Save Webhook button.

Export Abandoned Cart data using Webhooks - Tyche Softwares Documentation4. The webhook should be set to active to ensure data is sent.

Active Webhook

Data sent:

  1. Email address captured via Add to Cart popup – Fired when a cart is recorded and tracking starts for the same when a user enters their email address in the Add to Cart popup modal for guest users. This webhook is fired as soon as the email address is captured, so the cutoff time has not yet been reached.
"root":
"webhook_id": 1
"webhook_action": "atc"
"webhook_resource": "wcap_cart"
"webhook_resource_id": 382
"id": "382"
"product_id": 271
"variation_id": 288
"product_name": "Hoodie"
"timestamp": "1617815128"
"email_id": "[email protected]"
"source": "atc"

2. Email address captured at Checkout – When Add to Cart popup modal is turned off, guest carts are captured once the user enters their email address in the field at the Checkout page. This webhook is fired as soon as the email address is captured and the cart record is created, so the cutoff time has not yet been reached.

"root":
"webhook_id": 2
"webhook_action": "checkout"
"webhook_resource": "wcap_cart"
"webhook_resource_id": 383
"id": "383"
"product_details":
    0:
        "product_id": 272
        "variation_id": 0
        "product_name": "Hoodie with Logo"
        "line_subtotal": 45
    1:
        "product_id": 291
        "variation_id": 0
        "product_name": "Beanie with Logo"
        "line_subtotal": 18
"timestamp": "1617816368"
"billing_first_name": "Pinal"
"billing_last_name": "S"
"billing_country": "IN"
"billing_zipcode": "400101"
"email_id": "[email protected]"
"phone": "+910000000000"
"source": "checkout"
3. Email address captured via Form integrations – The plugin allows the site admin to capture customer email addresses through custom forms. This webhook is fired when the email address is captured and the user creates a cart, so the cutoff time has not yet been reached.
"root":
"webhook_id": 1
"webhook_action": "form"
"webhook_resource": "wcap_cart"
"webhook_resource_id": "549"
"id": "549"
"product_id": 274
"variation_id": 0
"product_name": "Beanie"
"timestamp": "1626192012"
"email_id": "[email protected]"
"source": "form"
4. Cart abandoned after cut-off – Cut off time is reached and the cart is listed in the Abandoned Orders page.
"root":
"webhook_id": 8
"webhook_action": "cutoff"
"webhook_resource": "wcap_cart"
"webhook_resource_id": 382
"id": 382
"user_id": "63000310"
"product_details":
    0:
        "product_id": 271
        "variation_id": 288
        "product_name": "Hoodie – Green, No"
        "line_subtotal": 45
        "total": 45
        "total_tax": 0
"timestamp": "1617815128"
"billing_first_name": "Pinal"
"billing_last_name": "S"
"billing_country": "IN"
"billing_zipcode": ""
"email_id": "[email protected]"
"phone": ""
"user_type": "GUEST"
"coupon_code": ""
"checkout_link": "https://staging.tychesoftwares.com/woo_pinal/?wacp_action=checkout_link&validate=uQOUyQCZbWB2KSepiE8w_FLCTcuB64bHE7C309pKpbpgOjwakmiR7gCxeIF-9zcmucIvxJLP7fE0tvpE-Ecoq31EZTvRpw"
5. Cart Abandonment Reminder Email Sent – Fired when a reminder email is sent for an abandoned cart.
"root":
"webhook_id": 3
"webhook_action": "sent"
"webhook_resource": "wcap_email"
"webhook_resource_id": "382"
"id": "382"
"product_details":
    0:
        "product_id": 271
        "variation_id": 288
        "product_name": "Hoodie – Green, No"
        "line_subtotal": 45
"timestamp": "1617815128"
"billing_first_name": "Pinal"
"billing_last_name": "S"
"email_id": "[email protected]"
"phone": ""
"user_type": "GUEST"
"links_included":
"cart_link": "https://staging.tychesoftwares.com/woo_pinal/?wacp_action=track_links&validate=CQMOU4-abWDO4UAL7vt8x0KAX52FI_IerDh-n4bgl5caoN47-b3z-o7P4xz4ht124eNvp1A3hLbylEHWmhx5LQRs&c=CgPFl4-abWBcxkPFWLYzRiSuW2E"
"checkout_link": "https://staging.tychesoftwares.com/woo_pinal/?wacp_action=track_links&validate=CANYfo-abWAqZPc-LQmrsHIh3QIFFsIN5PM_0BQHJ05kSwWpPEBn473dPmzccsID7S-J6zBdwcOAhc_IAu5X17PrPszuuA&c=CgPFl4-abWBcxkPFWLYzRiSuW2E"
"open_link": "https://staging.tychesoftwares.com/woo_pinal/?wcap_track_email_opens=wcap_email_open&email_id=332"
"sent_id": 332
"reminder_type": "email"
6. Cart Abandonment Reminder SMS Sent – This webhook is fired when a reminder SMS is sent for an abandoned cart.
"root":
"webhook_id": 4
"webhook_action": "sent"
"webhook_resource": "wcap_sms"
"webhook_resource_id": "383"
"id": "383"
"product_details":
    0:
        "product_id": 272
        "variation_id": 0
        "product_name": "Hoodie with Logo"
        "line_subtotal": 45
    1:
        "product_id": 291
        "variation_id": 0
        "product_name": "Beanie with Logo"
        "line_subtotal": 18
"timestamp": "1617816368"
"billing_first_name": "Pinal"
"billing_last_name": "S"
"email_id": "[email protected]"
"phone": "+910000000000"
"user_type": "GUEST"
"links_included":
"shop_link": "https://staging.tychesoftwares.com/woo_pinal/b"
"checkout_link": "https://staging.tychesoftwares.com/woo_pinal/4ztQ"
"sent_id": "1005252"
"reminder_type": "sms"
7. Cart Abandonment Reminder FB message Sent – This webhook is fired when a reminder Facebook message is sent for an abandoned cart
"root":
"webhook_id": 5
"webhook_action": "sent"
"webhook_resource": "wcap_fb"
"webhook_resource_id": "341"
"id": "341"
"product_details":
    0:
        "product_id": 282
        "variation_id": 0
        "product_name": "Album"
        "line_subtotal": 15
"timestamp": "1612453586"
"billing_first_name": "Pinal"
"billing_last_name": "S"
"email_id": "[email protected]"
"phone": ""
"user_type": "GUEST"
"links_included":
    "checkout_link": "https://staging.tychesoftwares.com/woo_pinal/4ztR"
"sent_id": "1005253"
"reminder_type": "fb"
8. Recovery link clicked in reminders sent – When links in reminders are accessed
"root":
"webhook_id": 6
"webhook_action": "clicked"
"webhook_resource": "wcap_link"
"webhook_resource_id": "384"
"id": "384"
"product_details":
    0:
        "product_id": 274
        "variation_id": 0
        "product_name": "Beanie"
        "line_subtotal": 18
    1:
        "product_id": 272
        "variation_id": 0
        "product_name": "Hoodie with Logo"
        "line_subtotal": 45
"timestamp": "1617903036"
"billing_first_name": "Pinal"
"billing_last_name": "S"
"email_id": "[email protected]"
"phone": ""
"user_type": "GUEST"
"reminder_type": "email"
"link_clicked": "qQFD6v3wbmCz_qoS_WG_WYrr6oL2G2F3dOIP4_hW5QGKd3PP0nB8ocoMcR0SZeI8YPPa6IdZxF5oAUoxwbKdCJPwAPEiSQ"
"time_clicked": 1617903313
9. Abandoned Order Recovered – Fired when a cart is recovered using a link sent in any of the reminders.
"root":
"webhook_id": 7
"webhook_action": "recovered"
"webhook_resource": "wcap_cart"
"webhook_resource_id": "384"
"id": "384"
"product_details":
    0:
        "product_id": 274
        "variation_id": 0
        "product_name": "Beanie"
        "line_subtotal": 18
    1:
        "product_id": 272
        "variation_id": 0
        "product_name": "Hoodie with Logo"
        "line_subtotal": 45
"timestamp": "1617903036"
"billing_first_name": "Pinal"
"billing_last_name": "S"
"email_id": "[email protected]"
"phone": "000-0000"
"user_type": "GUEST"
"order_id": 537
"total": "63.00"
"tax_total": "0"

We hope the above helps you get started on creating and using the webhooks. For any further queries, please feel free to get in touch with us.
